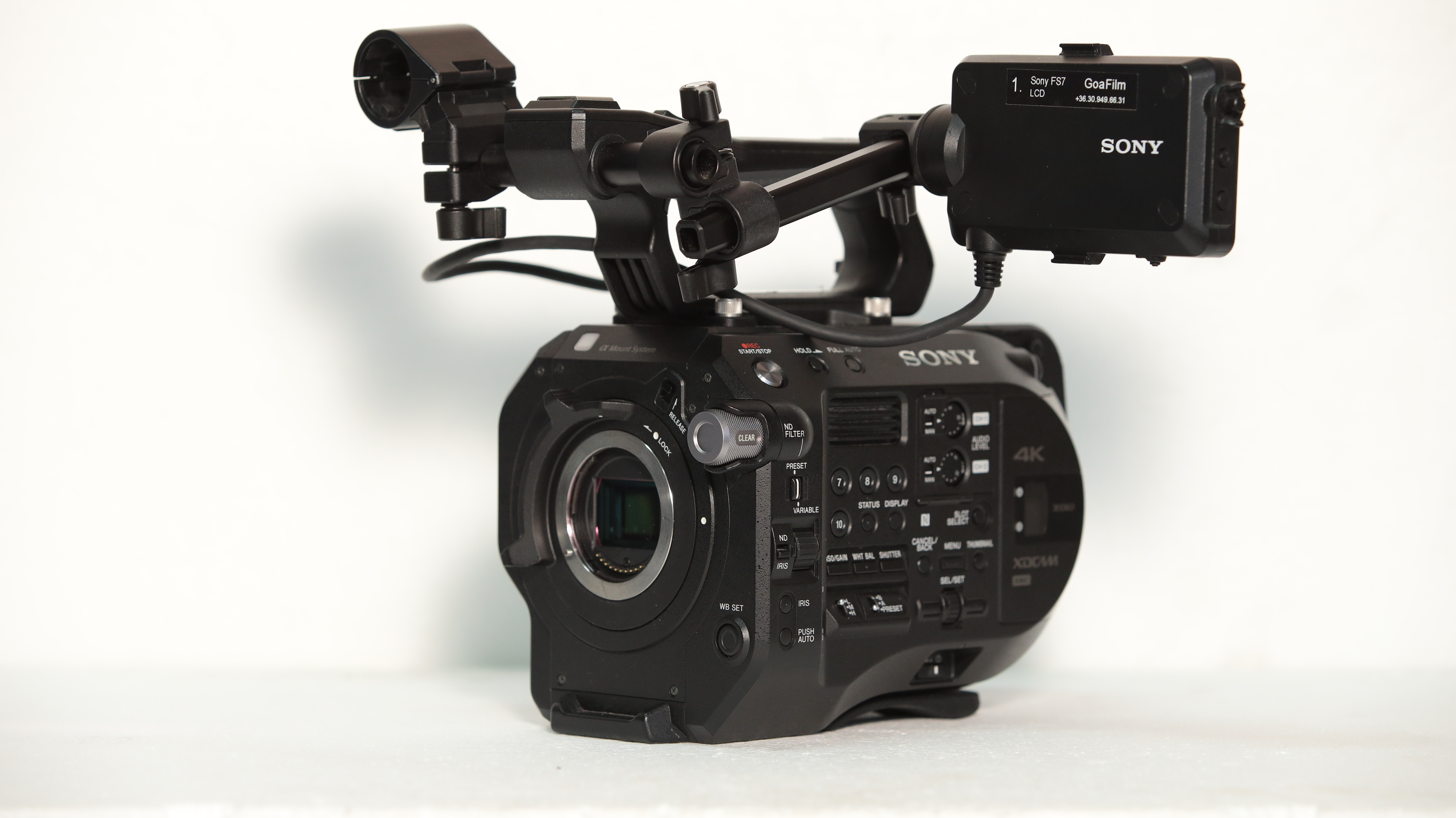

Sony FS7

Sony PXW-FS7 Specs


Image Device Super 35mm Single-Chip Exmor CMOS
Effective Picture Elements 17:9 4096 (H) x 2160 (V)
16:9 3840 (H) x 2160 (V)
Signal-to-Noise Ratio 57 dB (Y)
Sensitivity 2000 lx, 89.9% reflectance
T14 (3840 x 2160/23.98p mode 3200K)

ISO Sensitivity
ISO 2000 (S-Log3 Gamma D55 Light source)
Minimum Illumination 0.7 lux: +18dB,23.98P,Shutter OFF,ND Clear, F1.4
Signal System NTSC / PAL
Built-in Filters Clear, 1/4, 1/16, 1/64
LCD Monitor 3.5″ / 8.8 cm
Approx: 1.56M dots
Speaker Monaural
Shutter Speed 1/3 to 1/9000 of a sec
White Balance Preset
Memory A
Memory B (1500K-50000K)/ATW
Gain Selection -3, 0, 3, 6, 9, 12, 18 dB, AGC
Gamma Curve STD
HG
User
S-log3
Shooting Formats 4K 4096 x 2160
12-bit RAW

UHD 3840 x 2160
10-bit 4:2:2 XAVC-I
8-bit 4:2:0 XAVC-L

2K 2048 x 1080
12-bit Raw

HD 1920 x 1080
10-bit 4:2:2 XAVC-I
10-bit 4:2:2 XAVC-L
MPEG2 4:2:2

HD 1280 x 720
MPEG2 4:2:2
Audio Recording Format LPCM 24 bits, 48 kHz, 4 channels (Recording/Playback 2 channels)
Recording Formats XAVC-I QFHD MPEG-4 H.264/AVC
59.94P CBG, bit rate 600 Mb/s
50P CBG, bit rate 500 Mb/s
29.97P CBG, bit rate 300 Mb/s
23.98P CBG, bit rate 240 Mb/s
25P CBG, bit rate 250 Mb/s

XAVC-I HD MPEG-4 H.264/AVC
59.94P VBR, maximum bit rate 222 Mb/s
50P VBR, maximum bit rate 185 Mb/s
59.94i VBR, maximum bit rate 111 Mb/s
50i VBR, maximum bit rate 112 Mb/s
29.97p VBR, maximum bit rate 111 Mb/s
23.98p VBR, maximum bit rate 89 Mb/s
25p VBR, maximum bit rate 112 Mb/s

XAVC-L QFHD MPEG-4 H.264/AVC
59.94p/50p mode: VBR, maximum bit rate 150 Mb/s
29.97p/23.98p/25p mode: VBR, maximum bit rate 100 Mb/s

XAVC-L HD 50 MPEG-4 H.264/AVC
VBR, maximum bit rate 50 Mb/s

XAVC-L HD 35 MPEG-4 H.264/AVC
VBR, maximum bit rate 35 Mb/s

XAVC-L HD 25 MPEG-4 H.264/AVC
VBR, maximum bit rate 25 Mb/s

MPEG-2 Long GOP
CBR, maximum bit rate 50 Mbps, MPEG-2 422P@HL

XAVC-I QFHD 3840 x 2160/ 59.94p, 50p, 29.97p, 23.98p, 25p

XAVC-I HD
1920 x 1080/59.94p, 50p, 59.94i, 50i, 29.97p, 23.98p, 25p

XAVC-L QFHD 50
3840 x 2160/59.94p, 50p, 29.97p, 23.98p, 25p
XAVC-L 35
1920 x 1080/59.94p, 50p, 59.94i, 50i, 29.97p, 23.98p, 25p

MPEG-2 Long GOP
1920 x 1080/59.94i, 50i, 29.97p, 23.98p, 25p 1280 x 720/59.94p, 50p, 29.97p, 23.98p, 25p
Recording Frame Rate XAVC-I QFHD
3840 x 2160/ 59.94p, 50p, 29.97p, 23.98p, 25p

XAVC-I HD
1920 x 1080/59.94p, 50p, 59.94i, 50i, 29.97p, 23.98p, 25p

XAVC-L QFHD
3840 x 2160/59.94p, 50p, 29.97p, 23.98p, 25p

XAVC-L HD 50
1920 x 1080/59.94p, 50p, 59.94i, 50i, 29.97p, 23.98p, 25p

XAVC-L 35
1920 x 1080/59.94p, 50p, 59.94i, 50i, 29.97p, 23.98p, 25p

XAVC-L 25
1920 x 1080/59.94i, 50i

MPEG-2 Long GOP MPEG HD422
1920 x 1080/59.94i, 50i, 29.97p, 23.98p, 25p
1280 x 720/59.94p, 50p, 29.97p, 23.98p, 25p
Slow & Quick Motion Function XAVC-I mode 3840 x 2160: 1 to 60 frames (59.94p, 50p, 29.97p, 23.98p, 25p)
XAVC-I mode 1920 x 1080: 1 to 180 frames (59.94p, 29.97p, 23.98p)
XAVC-I mode 1920 x 1080: 1 to 150 frames (50p, 25p)
XAVC-L mode 3840 x 2160: 1 to 60 frames (59.94p, 50p, 29.97p, 23.98p, 25p)
XAVC-L mode 1920 x 1080: 1 to 120 frames (59.94p, 50p, 29.97p, 23.98p, 25p)
Maximum Recording Time XAVC-I mode QFHD 59.94p
When using QD-G128A (128 GB): Approx. 22 minutes
When using QD-G64A (64 GB) Approx. 11 minutes

XAVC-I mode QFHD 50p
When using QD-G128A (128 GB): Approx. 26 minutes
When using QD-G64A (64 GB) Approx. 13 minutes

XAVC-I mode QFHD 29.97p
When using QD-G128A (128 GB): Approx. 44 minutes
When using QD-G64A (64 GB) Approx. 22 minutes

XAVC-I mode QFHD 23.98p
When using QD-G128A (128 GB): Approx. 55 minutes
When using QD-G64A (64 GB) Approx. 27 minutes

XAVC-I mode QFHD 25p
When using QD-G128A (128 GB): Approx. 52 minutes
When using QD-G64A (64 GB) Approx. 26 minutes

XAVC-I mode HD 59.94p
When using QD-G128A (128 GB): Approx. 59 minutes
When using QD-G64A (64 GB) Approx. 30 minutes

XAVC-I mode HD 50p
When using QD-G128A (128 GB): Approx. 71 minutes
When using QD-G64A (64 GB) Approx. 35 minutes

XAVC-I mode HD 59.94i
When using QD-G128A (128 GB): Approx. 118 minutes
When using QD-G64A (64 GB) Approx. 59 minutes

XAVC-I mode HD 50i
When using QD-G128A (128 GB): Approx. 141 minutes
When using QD-G64A (64 GB) Approx. 70 minutes

XAVC-I mode HD 29.97p
When using QD-G128A (128 GB): Approx. 118 minutes
When using QD-G64A (64 GB) Approx. 59 minutes

XAVC-I mode HD 23.98pM/b>
When using QD-G128A (128 GB): Approx. 147 minutes
When using QD-G64A (64 GB) Approx. 74 minutes

XAVC-I mode HD 25p
When using QD-G128A (128 GB): Approx. 141 minutes
When using QD-G64A (64 GB) Approx. 70 minutes

XAVC-L mode QFHD 59.94p/50p
When using QD-G128A (128 GB): Approx. 87 minutes
When using QD-G64A (64 GB) Approx. 44 minutes

XAVC-L mode QFHD 29.97p/23.98p/25p
When using QD-G128A (128 GB): Approx. 131 minutes
When using QD-G64A (64 GB) Approx. 66 minutes

XAVC-L 50 mode
When using QD-G128A (128 GB): Approx. 262 minutes
When using QD-G64A (64 GB) Approx. 131 minutes

XAVC-L 35 mode
When using QD-G128A (128 GB): Approx. 374 minutes
When using QD-G64A (64 GB) Approx. 187 minutes

XAVC-L 25 mode
When using QD-G128A (128 GB): Approx. 524 minutes
When using QD-G64A (64 GB) Approx. 262 minutes

MPEG HD422 mode
When using QD-G128A (128 GB): Approx. 262 minutes
When using QD-G64A (64 GB) Approx. 131 minutes
Media Card Slots 2 x XQD
1 x SD (for configuration data only)
Input and Output Connectors Audio Input
2 x 3-pin XLR
Line/mic/mic +48
Mic Reference: -40. -50. -60 dBu

SDI Output
2 x BNC HD/3G-SDI
SMTPE292M/424M/425M

HDMI 2.0
1 x Type A

USB
USB device, miniB

Headphone
1 x Stereo mini jack
-16 dBu 16 Ω

Remote
Stereo mini jack (Φ2.5 mm)
Accessory Shoe Multi-Interface (MI) shoe
Power Requirement 12 VDC
Power Consumption Approx. 19 W (while recording XAVC-I QFHD 59.94p, SELP28135G Lens, Viewfinder ON, not using external device)
Battery Operating Time BP-U30: Approx. 1 hr while recording XAVC-I QFHD 59.94p, SELP28135G Lens, Viewfinder ON, not using external device
BP-U60: Approx. 2 hr while recording XAVC-I QFHD 59.94p, SELP28135G Lens, Viewfinder ON, not using external device
BP-U90: Approx. 3 hr while recording XAVC-I QFHD 59.94p, SELP28135G Lens, Viewfinder ON, not using external device
Temperature Operating: 32 to 104°F / 0 to 40°C
Storage: -4 to 140°F / -4 to 140°C
Dimensions (WxHxD) 6.14 x 9.41 x 9.72″ / 156 x 239 x 247 mm
Weight 4.4 lb / 2.0 kg: Body Only
9.9 lb / 4.4 kg: Body, Viewfinder, Eyepiece, Grip Remote Control, BP-U30 Battery, SELP28135G Lens, an XQD Memory card
